Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Insulation: | XLPE |
|---|---|---|---|
| Jacket: | ZR-PVC | Conductor: | Copper |
| Application: | Construction | Armor: | Steel Tape Armor |
| Inner Cover: | PVC | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | shielded control cable,control wire |
||
steel wooden drum
Delivery Time
15-20days since advance payment

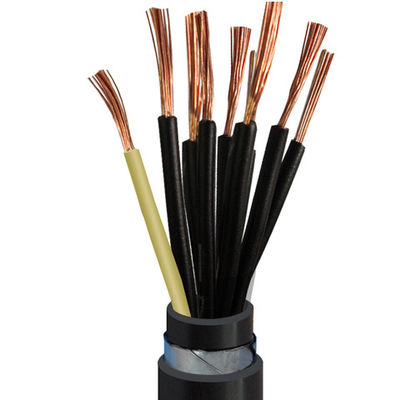

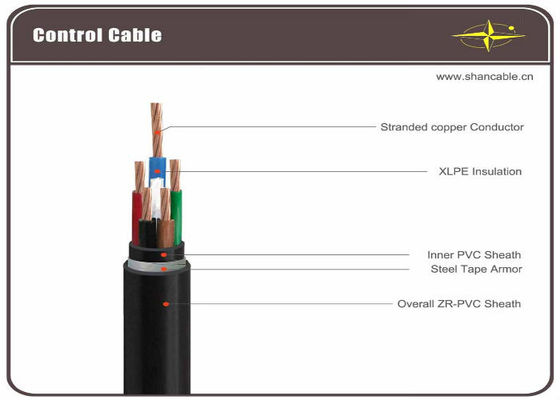

Product name: multi-core flame retardant XLPE insulated armoured control cable
Conductsor: Stranded copper conductor
Insulation: XLPE
Inner Cover: PVC
Armor:Steel Tape Armor
Sheath: ZR-PVC
Note: Insulation color as per standards or at request
Applications
Be suitable for measuring controlling or regulation for assmebly and production line with rated voltage 450/750 V.
For laying indoors, in ducts and in trenches, for fixed installation.
Standsrd:
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008 Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Max.D.C resistance of at 20℃ MΩ/km |
| 2X0.75 | 0.6 | 1.2 | 24.5 |
| 3x0.75 | 0.6 | 1.2 | 24.5 |
| 4x0.75 | 0.6 | 1.2 | 24.5 |
| 5x0.75 | 0.6 | 1.2 | 24.5 |
| 7x0.75 | 0.6 | 1.2 | 24.5 |
| 8x0.75 | 0.6 | 1.2 | 24.5 |
| 10x0.75 | 0.6 | 1.2 | 24.5 |
| 12x0.75 | 0.6 | 1.2 | 24.5 |
| 14x0.75 | 0.6 | 1.5 | 24.5 |
| 16x0.5 | 0.6 | 1.5 | 24.5 |
| 19x0.75 | 0.6 | 1.5 | 24.5 |
| 24x0.75 | 0.6 | 1.5 | 24.5 |
| 27x0.75 | 0.6 | 1.5 | 24.5 |
| 30x0.75 | 0.6 | 1.5 | 24.5 |
