Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC 60227 | Rated Voltage: | 450/750V |
|---|---|---|---|
| Warranty: | 2 Years | Core: | Single |
| Sheath: | PVC | Conductor: | Pure Copper |
| Color: | As Requirements | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | electrical wire cable,insulated wire cable |
||

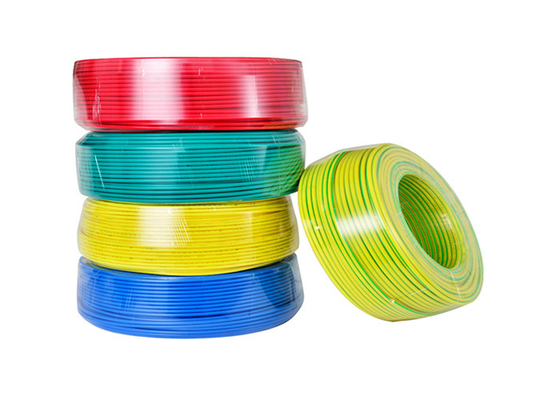

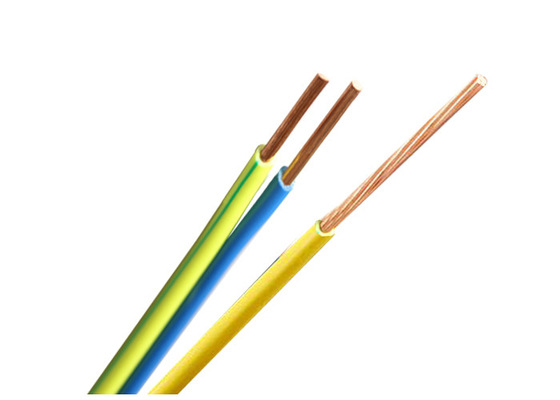

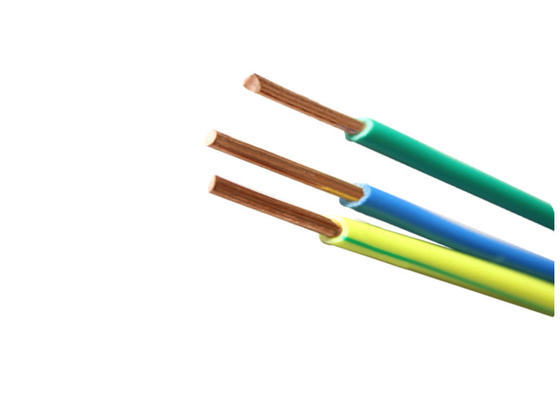

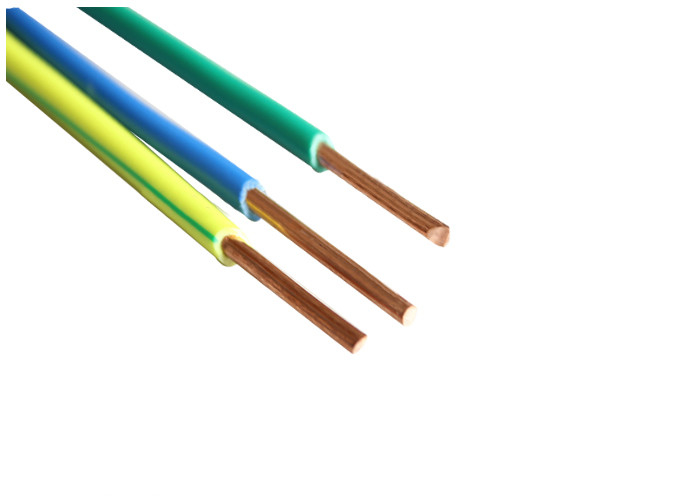

Solid Copper conductor Electrical Cable Wire with PVC Insulation 450 / 750V Rated Voltage H07V-U
1). Standard: RV,RVV,BV,BVV,H05VV-F,H03VV-F,H03VVH2-F,H05V2V2-F,H05V-K,H07V-K,H05V-U,H07V-U and so on
2). Material: PVC insulation
3). Conductor: 1,2,3,4 core,or multi-cores
4). Packing length: all length available
5). Section:0.5mm² to 10mm²
6). Color:all color available
Applications
The products are widely used in household appliances, small electric tools, electrical equipment such as dynamic lighting, instrumentation and control circuit.
The PVC wire can be used in new PVC materials, which have ultra-soft, cold and environmental properties.This wire has been certified by CE and can be exported to developed countries and regions such as European countries
| Nominal sections mm2 | Conductor structure mm |
Thickness of insulation mm |
| 1.5 | 7/0.52 | 0.7 |
| 2.5 | 1/1.78 | 0.8 |
| 2.5 | 7/0.68 | 0.8 |
| 4 | 1/2.25 | 0.8 |
| 4 | 7/0.85 | 0.8 |
| 6 | 1/2.76 | 0.8 |
| 6 | 7/1.03 | 0.8 |
| 10 | 7/1.35 | 1.0 |
| 16 | 7/1.70 | 1.0 |
| 25 | 7/2.14 |
1.2 |
Packing
a) Packing lengths: 100m/roll, 200m/roll, or up to your requirments
b) Inner packing: wooden reel,coil, plastic reel
c) Outer packing: carton box
d) Other packing available according to customer
Strict QC system
We have 4 testing programs to guarantee our quality during production: Self-inspection(Operators of each process will do self-inspection during theor work); Mutual-Inspection(Operator in next working process will do inpection for previous processes); Perform In-process quality audit(Inspectors from quality department will do spot inspection during production); Perform special inspection(inspectors from quality department will do special inspection for key processes)
