Product Details:
Payment & Shipping Terms:
|
| Conductor: | Flexible Copper Conductor | Insulation: | Pvc |
|---|---|---|---|
| Rated Voltage: | 450/750 V | Certificates: | CE,ROHS,CCC,KEMA And More Other At Request |
| Core: | 1 Core | Size: | 1.5mm-240mm |
| Standards: | IEC60227 | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | electrical wire cable,insulated wire cable |
||

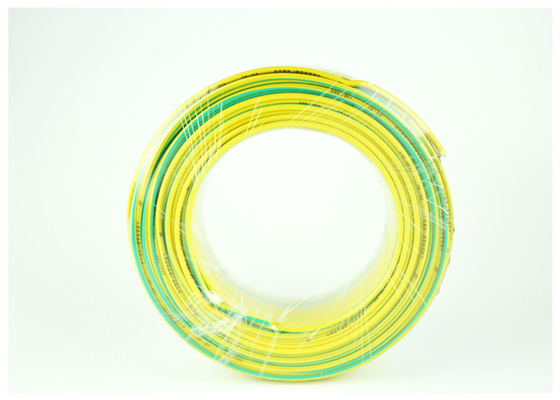

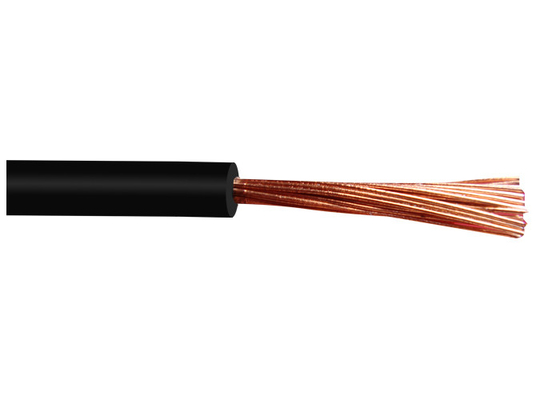

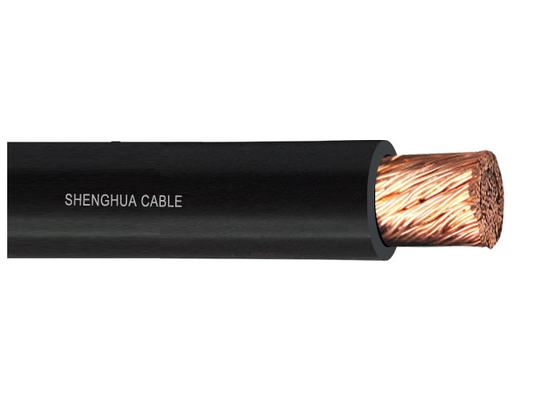

h05v-k or h07v-k pvc insulated non sheated single core cables
Single-core non-sheathed cables
With rigid conductor for general purposes 450/750v
Specifications
| Nom.Cross-section Area | Thickness of insulation | Mean.O.D. | Max.R of conductor at 70℃ | Min.Insulation resistance at 20℃ | Approx.weight | ||
| Lower Limit | Upper Limit | ||||||
| mm2 | mm | mm | mm | m ohm/km | ohm˙km | kg/km | |
| 1.5 | 0.7 | 2.8 | 3.4 | 0.010 | 13.3 | 20.3 | |
| 2.5 | 0.8 | 3.4 | 4.1 | 0.009 | 7.98 | 31.6 | |
| 4 |
0.8 |
3.9 | 4.8 | 0.007 | 4.95 | 47.1 | |
| 6 | 0.8 | 4.4 | 5.3 | 0.006 | 3.30 | 68.0 | |
| 10 | 1.0 | 5.7 | 6.8 | 0.0056 | 1.91 | 112.0 | |
| 16 | 1.0 | 6.7 | 8.1 | 0.0046 | 1.21 | 179.0 | |
| 25 | 1.2 | 8.4 | 10.2 | 0.0044 | 0.780 | 281.0 | |
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
