Product Details:
Payment & Shipping Terms:
|
| Insulation: | PVC | Conductor: | Flexible Copper Conductor Class 5 |
|---|---|---|---|
| Working Temperature: | Not More Than 70℃ | Rated Voltage: | 300/500 V |
| Sheath: | PVC | Sheath Color: | White And More |
| Insulation Color: | Red,black,blue And More | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | electrical wire cable,insulated wire cable |
||
Flexible copper conductor pvc insulation and sheath house wiring cable
Descriptions

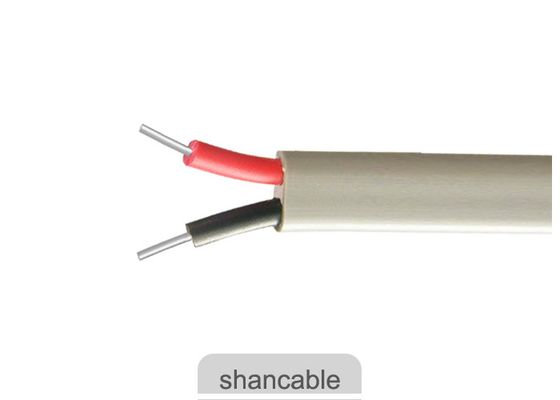

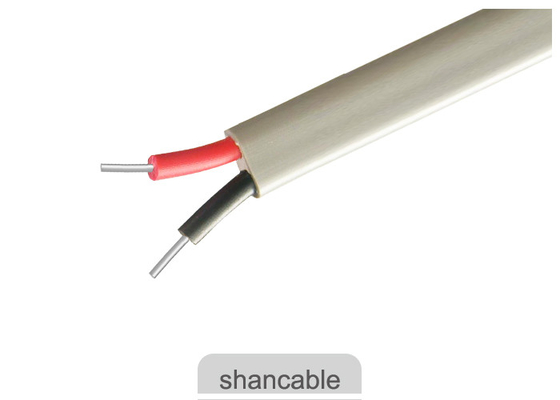

Ordinary PVC Sheathed cord
Code designation:60227 IEC 53 (International),RVVB 300/500v(China)
Constructions
1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5
2. Insulation:PVC/D
3. Sheath:PVC type ST5
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical date
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE,RoHS,CCC,KEMS and more others at request
Specifications
| Nom. Cross-section of conductor | Number/Diameter of core | Max.overall Diameter | Approx.Weight |
| mm2 | mm | mm | kg/km |
| 2x0.5 | 2x16/0.2 | 3.8/6.0 | 27.7 |
| 2x0.75 | 2x24/0.2 | 3.9x6.4 | 34.5 |
