| Color Of Insulation: | Two Core:Red,Blue Three Core:Blue,Black,Brown Four Core:Yellow/Green,Blue,Black,Brown | Nominal Area Of Conductor: | 2C ~,5C X1.5mm2 To 6.0mm2 |
|---|---|---|---|
| Test Voltage: | 2500V/5mins | Conductor Type: | Flexible Copper Conductor (class5) |
| Jacket Colour: | White | Warranty: | 2 Years |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | insulated electrical wire,insulated wire cable |
||

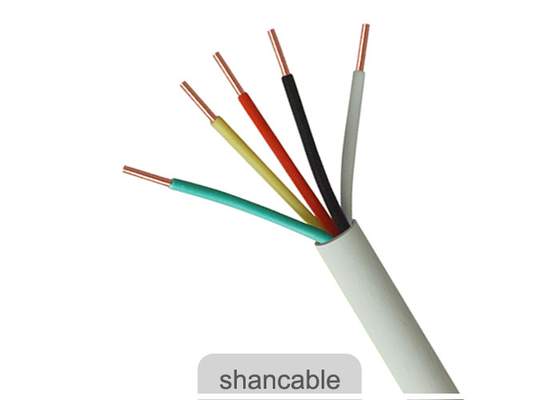

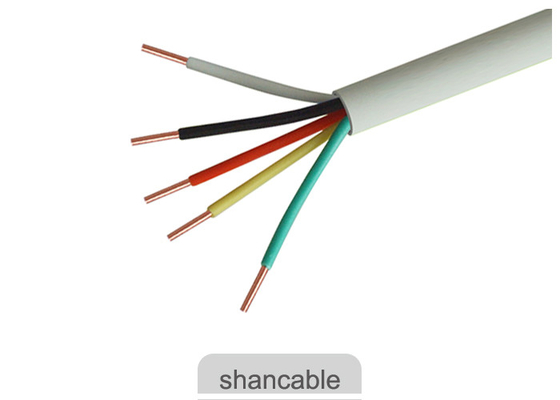

Solid Copper Conductor multicore PVC insulation and PVC sheath Cable Wire
Description:
Single core cables with copper conductor , ( solid or stranded ) and insulated with PVC compound. The cables are manufactured according to IEC 60227 60228 or BS 6004 specifications.
Construction:
Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 Insulation : PVC compound rated 70º C or 85º C for continuous operation.
Sheath: PVC compound 70ºC or 90ºC grey or black or as per requirement.
Standards
International: IEC 60227 IEC 60228,
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V, 300/300V, 450/750V
Max. Conductor Temp. in normal use: 70°C or 90°C
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.5 | 2X16/0.2 | 5.9 | 47.9 |
| 2X0.75 | 2X24/0.2 | 6.3 | 56.2 |
| 3X0.5 | 3X16/0.2 | 6.3 | 58.4 |
| 3X0.75 | 3X24/0.2 | 6.7 | 72.9 |
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.75 | 2X24/0.20 | 7.2 | 50 |
| 2X1.0 | 2X32/0.20 | 7.5 | 57.8 |
| 2X1.5 | 2X30/0.25 | 8.6 | 74.7 |
| 2X2.5 | 2X49/0.25 | 10.6 | 120 |
| 3X0.75 | 3X24/0.20 | 7.6 | 63.1 |
| 3X1.0 | 3X32/0.20 | 8.0 | 74.0 |
| 3X1.5 | 3X30/0.25 | 9.4 | 102.0 |
| 3X2.5 | 3X49/0.25 | 11.4 | 162.0 |
| 4X0.75 | 4X24/0.20 | 8.3 | 78.5 |
| 4X1.0 | 4X32/0.20 | 9.0 | 97.2 |
| 4X1.5 | 4X30/0.25 | 10.5 | 133.0 |
| 4X2.5 | 4X49/0.25 | 12.5 | 204.0 |
| 5X0.75 | 5X24/0.20 | 9.3 | 96.9 |
| 5X1.0 | 5X32/0.20 | 9.8 | 115 |
| 5X1.5 | 5X30/0.25 | 11.6 | 158 |
| 5X2.5 | 5X49/0.25 | 13.9 | 249 |
