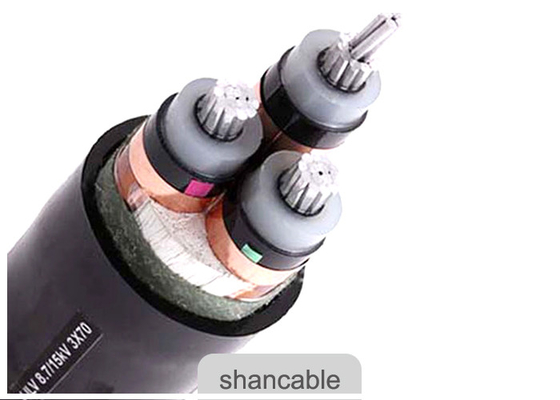

Medium Voltage XLPE Insulated Power Cable 8.7/15kV Corrasion Resistance
XLPE Insulated Power Cable Applications
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
XLPE Insulated Power Cable Construction
Conductor Screen: Semi-conductor
Insulation : XLPE (cross-linked polyethylene) rated at 90 OC
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
XLPE Insulated Power Cable Standards
International: IEC 60502-2, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 8.7/15kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
XLPE Insulated Power Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 25 | 7/2.14 | 4.5 | 2.4 | 46.0 | 2072 | 1.2 | 30.5 | 95 | 100 |
| 3 × 35 | 7/2.52 | 4.5 | 2.6 | 48.0 | 2334 | 0.868 | 30.5 | 115 | 120 |
| 3 × 50 | 10/2.52 | 4.5 | 2.7 | 51.0 | 2598 | 0.641 | 30.5 | 135 | 140 |
| 3 × 70 | 14/2.52 | 4.5 | 2.8 | 55.0 | 2895 | 0.443 | 30.5 | 170 | 170 |
| 3 × 95 | 19/2.52 | 4.5 | 2.9 | 58.0 | 3462 | 0.32 | 30.5 | 205 | 210 |
| 3 × 120 | 24/2.52 | 4.5 | 3.0 | 61.0 | 3888 | 0.253 | 30.5 | 235 | 235 |
| 3 × 150 | 30/2.52 | 4.5 | 3.1 | 64.0 | 4416 | 0.206 | 30.5 | 270 | 260 |
| 3 × 185 | 37/2.52 | 4.5 | 3.2 | 68.0 | 4935 | 0.164 | 30.5 | 310 | 300 |
| 3 × 240 | 48/2.52 | 4.5 | 3.4 | 73.0 | 5712 | 0.125 | 30.5 | 370 | 345 |
| 3 × 300 | 61/2.52 | 4.5 | 3.5 | 77.0 | 6577 | 0. 1 | 30.5 | 420 | 390 |
| 3 × 400 | 61/2.97 | 4.5 | 3.8 | 86.0 | 8081 | 0.0778 | 30.5 | 485 | 440 |
