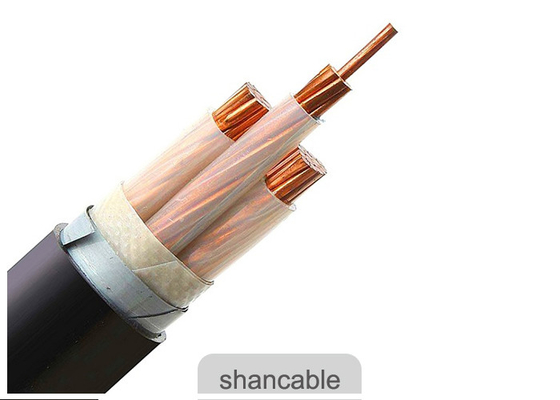

0.6/1kV XLPE Insulated Power Cable Indoors And Outdoors Excellent Electricity
XLPE Insulated Power Cable Usage
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
XLPE Insulated Power Cable Construction
Conductor : copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner sheath : PVC type ST2 to IEC 60502, black
Armour Type : Double Steel tape armour
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
XLPE Insulated Power Cable Standards
International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request
XLPE Insulated Power Cable Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
XLPE Insulated Power Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Steel tape thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm |
mm |
mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 4 | 1/2.25 | 0.7 | 2x0.2 | 1.5 | 15 | 390 | 4.61 | 3.5 | 34 | 45 |
| 3 × 6 | 1/2.76 | 0.7 | 2x0.2 | 1.5 | 16 | 471 | 3.08 | 3.5 | 43 | 57 |
| 3 × 10 | 7/1.38 | 0.7 | 2x0.2 | 1.5 | 18 | 622 | 1.83 | 3.5 | 60 | 77 |
| 3 × 16 | 7/1.78 | 0.7 | 2x0.2 | 2.0 | 22 | 1005 | 1.15 | 3.5 | 83 | 105 |
| 3 × 25 | 7/2.14 | 0.9 | 2x0.2 | 2.0 | 25.0 | 1371 | 0.727 | 3.5 | 105 | 125 |
| 3 × 35 | 7/2.52 | 0.9 | 2x0.2 | 2.0 | 27.0 | 1724 | 0.524 | 3.5 | 125 | 155 |
| 3 × 50 | 10/2.52 | 1.0 | 2x0.2 | 2.0 | 30.0 | 2247 | 0.387 | 3.5 | 160 | 185 |
| 3 × 70 | 14/2.52 | 1.1 | 2x0.2 | 2.5 | 35.0 | 3023 | 0.268 | 3.5 | 200 | 225 |
| 3 × 95 | 19/2.52 | 1.1 | 2x0.5 | 2.5 | 39.0 | 3825 | 0.193 | 3.5 | 245 | 270 |
| 3 × 120 | 24/2.52 | 1.2 | 2x0.5 | 2.5 | 42.0 | 4642 | 0.153 | 3.5 | 285 | 310 |
