Product Details:
Payment & Shipping Terms:
|
| Model Name: | PVC Insulated Cables | Conductor Type: | Copper Conductor |
|---|---|---|---|
| Insulation: | XLPE(cross-linked Polyethylene) Rated At 90 OC | Sheath: | PVC Or FR-PVC Type ST2 To IEC 60502, Black |
| Feature: | Low Voltage | Free Sample: | Avaliable |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | PVC Electrical Cable,PVC Insulated Power Cable |
||

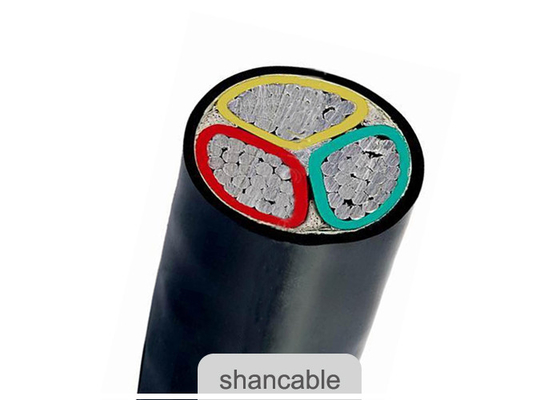

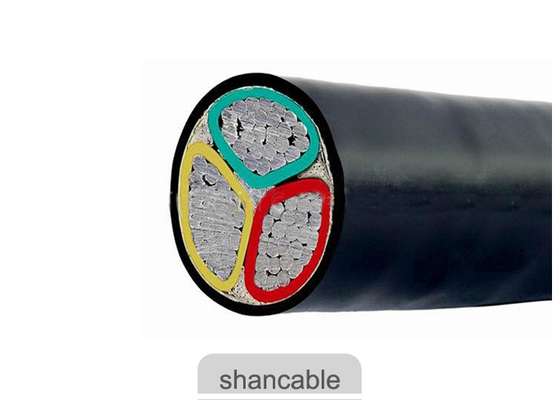

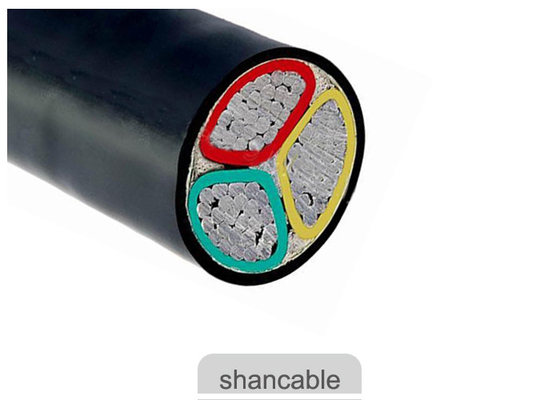

Low Voltage 1kV PVC Insulated Cables Copper Conductor IEC 60228 Standard
PVC Insulated Cables Usage
This PVC Insulated Cables is suitable for the fixed laying in the AC 50Hz,rated voltage 0.6/1kV and the following transmission and transmission and distribution lines on the road for transmission of electricity can be used.
PVC Insulated Cables Standards
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (110OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
PVC Insulated Cables Terms
Commercial Items: MOQ: 500m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
PVC Insulated Cables Technical parameter
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 4 | 1/2.25 | 0.7 | 1.4 | 7.1 | 79 | 4.61 | 3.5 | 41 | 55 |
| 1 × 6 | 1/2.76 | 0.7 | 1.4 | 7.6 | 101 | 3.08 | 3.5 | 52 | 69 |
| 1 × 10 | 7/1.38 | 0.7 | 1.4 | 8.7 | 148 | 1.83 | 3.5 | 71 | 92 |
| 1 × 16 | 7/1.78 | 0.7 | 1.4 | 9.6 | 211 | 1.15 | 3.5 | 92 | 115 |
| 1 × 25 | 7/2.14 | 0.9 | 1.4 | 11.2 | 308 | 0.727 | 3.5 | 120 | 150 |
| 1 × 35 | 7/2.52 | 0.9 | 1.4 | 12.2 | 406 | 0.524 | 3.5 | 150 | 180 |
| 1 × 50 | 10/2.52 | 1.0 | 1.4 | 13.6 | 560 | 0.387 | 3.5 | 180 | 215 |
| 1 × 70 | 14/2.52 | 1.1 | 1.4 | 15.3 | 759 | 0.268 | 3.5 | 230 | 265 |
| 1 × 95 | 19/2.52 | 1.1 | 1.5 | 17.2 | 1006 | 0.193 | 3.5 | 285 | 320 |
| 1 × 120 | 24/2.52 | 1.2 | 1.5 | 18.9 | 1250 | 0.153 | 3.5 | 335 | 360 |
| 1 × 150 | 30/2.52 | 1.4 | 1.6 | 21.0 | 1557 | 0.124 | 3.5 | 385 | 410 |
| 1 × 185 | 37/2.52 | 1.6 | 1.6 | 23.0 | 1902 | 0.0991 | 3.5 | 450 | 460 |
| 1 × 240 | 48/2.52 | 1.7 | 1.7 | 25.7 | 2438 | 0.0754 | 3.5 | 535 | 535 |
| 1 × 300 | 61/2.52 | 1.8 | 1.8 | 28.2 | 3023 | 0.0601 | 3.5 | 620 | 605 |
| 1 × 400 | 61/2.97 | 2.0 | 1.9 | 32.1 | 3990 | 0.047 | 3.5 | 720 | 685 |
| 1 × 500 | 61/3.23 | 2.2 | 2.0 | 35.0 | 4959 | 0.0366 | 3.5 | 835 | 775 |
| 1 × 630 | 61/3.5 | 2.4 | 2.2 | 39.8 | 6231 | 0.0283 | 3.5 | 960 | 865 |
| 2 × 1.5 | 1/1.38 | 0.7 | 1.8 | 9.6 | 128 | 12.1 | 3.5 | 22 | 35 |
| 2 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.4 | 164 | 7.41 | 3.5 | 33 | 46 |
| 2 × 4 | 1/2.25 | 0.7 | 1.8 | 11.4 | 201 | 4.61 | 3.5 | 43 | 59 |
| 2 × 6 | 1/2.76 | 0.7 | 1.8 | 12.3 | 247 | 3.08 | 3.5 | 55 | 75 |
| 2× 10 | 7/1.38 | 0.7 | 1.8 | 14.6 | 365 | 1.83 | 3.5 | 76 | 100 |
| 2 × 16 | 7/1.78 | 0.7 | 1.8 | 16.4 | 494 | 1.15 | 3.5 | 97 | 130 |
| 2 × 25 | 7/2.14 | 0.9 | 1.8 | 19.6 | 708 | 0.727 | 3.5 | 130 | 165 |
| 2 × 35 | 7/2.52 | 0.9 | 1.8 | 21.6 | 923 | 0.524 | 3.5 | 160 | 200 |
| 2 × 50 | 10/2.52 | 1.0 | 1.8 | 25.2 | 1298 | 0.387 | 3.5 | 195 | 240 |
| 2 × 70 | 14/2.52 | 1.1 | 1.8 | 28.6 | 1704 | 0.268 | 3.5 | 245 | 290 |
| 2 × 95 | 19/2.52 | 1.1 | 2.0 | 32.4 | 2219 | 0.193 | 3.5 | 305 | 355 |
| 2 × 120 | 24/2.52 | 1.2 | 2.1 | 36.0 | 2731 | 0.153 | 3.5 | 355 | 405 |
| 2 × 150 | 30/2.52 | 1.4 | 2.2 | 40.0 | 3358 | 0.124 | 3.5 | 405 | 450 |
| 2 × 185 | 37/2.52 | 1.6 | 2.3 | 44.2 | 4136 | 0.0991 | 3.5 | 465 | 510 |
| 2 × 240 | 48/2.52 | 1.7 | 2.5 | 49.6 | 5250 | 0.0754 | 3.5 | 545 | 590 |
| 2 × 300 | 61/2.52 | 1.8 | 2.7 | 54.6 | 6465 | 0.0601 | 3.5 | 625 | 670 |
| 3 × 1.5 | 1/1.38 | 0.7 | 1.8 | 10.0 | 150 | 12.1 | 3.5 | 18 | 29 |
| 3 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.9 | 186 | 7.41 | 3.5 | 28 | 39 |
| 3 × 4 | 1/2.25 | 0.7 | 1.8 | 12.0 | 239 | 4.61 | 3.5 | 37 | 51 |
| 3 × 6 | 1/2.76 | 0.7 | 1.8 | 13.0 | 304 | 3.08 | 3.5 | 47 | 64 |
| 3 × 10 | 7/1.38 | 0.7 | 1.8 | 15.4 | 471 | 1.83 | 3.5 | 65 | 86 |
| 3 × 16 | 7/1.78 | 0.7 | 1.8 | 17.4 | 658 | 1.15 | 3.5 | 84 | 110 |
| 3 × 25 | 7/2.14 | 0.9 | 1.8 | 20.8 | 961 | 0.727 | 3.5 | 110 | 140 |
| 3 × 35 | 7/2.52 | 0.9 | 1.8 | 23.2 | 1257 | 0.524 | 3.5 | 135 | 170 |
| 3 × 50 | 10/2.52 | 1.0 | 1.8 | 26.8 | 1732 | 0.387 | 3.5 | 170 | 205 |
| 3 × 70 | 14/2.52 | 1.1 | 1.9 | 30.7 | 2564 | 0.268 | 3.5 | 215 | 250 |
| 3 × 95 | 19/2.52 | 1.1 | 2.0 | 34.6 | 3298 | 0.193 | 3.5 | 265 | 300 |
| 3 × 120 | 24/2.52 | 1.2 | 2.1 | 38.4 | 4047 | 0.153 | 3.5 | 310 | 345 |
| 3 × 150 | 30/2.52 | 1.4 | 2.3 | 43.0 | 4981 | 0.124 | 3.5 | 350 | 385 |
| 3 × 185 | 37/2.52 | 1.6 | 2.4 | 47.5 | 6096 | 0.0991 | 3.5 | 405 | 435 |
| 3 × 240 | 48/2.52 | 1.7 | 2.6 | 53.3 | 7729 | 0.0754 | 3.5 | 480 | 500 |
| 3 × 300 | 61/2.52 | 1.8 | 2.8 | 58.6 | 9509 | 0.0601 | 3.5 | 555 | 565 |
| 3 × 400 | 61/2.97 | 2.0 | 3.1 | 67.2 | 12479 | 0.047 | 3.5 | 640 | 640 |
