Product Details:
Payment & Shipping Terms:
|
| Product Name: | XLPE LSZH Cable | Core: | Multi Core |
|---|---|---|---|
| Test Voltage: | 3.5KV/5min | Standard: | IE650502-1,IEC60228,IEC60227 |
| Application: | Power Transmission And Distribution And Lighting Systems | Rated Voltage: | 600/1000V |
| Type: | VV | Outer Sheath Colour: | Black White,Green/or According To Customer’s Requirment |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | 0.6 / 1 KV low smoke cable,Armoured lszh cable |
||

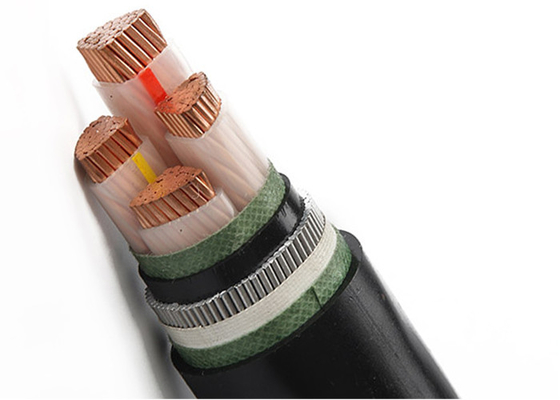

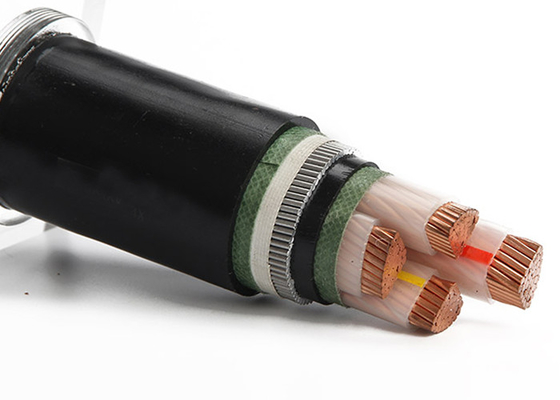

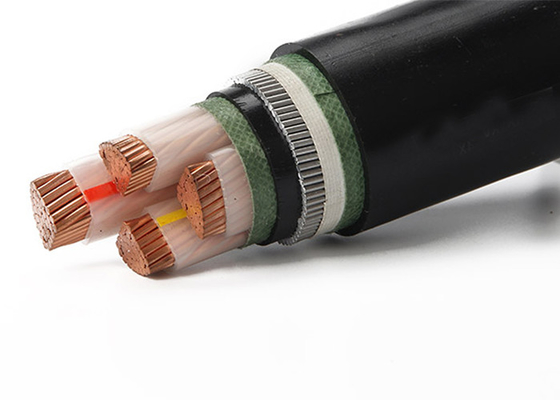

Multi Core XLPE insulated LSZH steel tape armoured Outer Sheath Power Cable, 800 x 600
XLPE LSZH Cable Constructions
① Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2
② Insulation: XLPE
③ Amour: Double Steel tape armour
XLPE LSZH Cable Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
XLPE LSZH Cable Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section area below 300mm2, 140℃ when section area above 300mm2)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D
XLPE LSZH Cable Parameters
