Product Name: | FR Cable | Nominal Area Of Conductor: | Power Cable:2.5mm2 To 300mm2 |
---|---|---|---|
Package: | Wooden Drum | Insulation: | Inorganic Mineral Synthetic Mica Tape |
Standard: | IEC60702 | Application: | Public Servie High Temperature Situation. |
Rated Voltage: | 600/1000V | Cable Type: | Class 1 .2 |
Corporation: | Shenghua Group | Brand: | Sh Cable |
Highlight: | 800 X 600 fire protection cable,2.5mm2 fire rated cable |
Fire Resistant Cable With Inorganic Mineral Synthetic mica Tape, 800 x 600
Fire Resistant Cable Constructions
1. Conductor: Plain circular stranded copper conductor,IEC 60228 Class 1,2
2. Insulation:Inorganic mineral synthetic mica tape,wrapped
3. Metallic Sheath:Aluminum sleeve,isolated
4. Insualtion Color code:PE extruded
5. Fire resistant layer:Inorganic mineral synthetic material,filled
6. Wrapping layer:Ceramic silicone rubber composite tape,wrapped
7. Out covering: PVC or LSZH,extruded
Fire Resistant Cable Applications
The product is used in public service,high temperature situation,potentially explosive area,hygiene situation,general installation.
Fire Resistant Cable Standards
International: IEC 60702-2002
China: GB/T 13033-2007
Other standards such as BS,DIN and ICEA upon request
Fire Resistant Cable Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (250℃), in the combustion flame temperature of 950-1000℃ for 3h.
Pass BS 6387 standard.
Fire Resistant Cable Certificates
BS6387 .CE, RoHS, CCC, KEMA and more others at request
Fire Resistant Cable Specifications
1Core
Nom. Cross-section of conductor | Insulation Thickness | Mean value of sheath thickness | Nominal cross section are of sheath | Nominal thickness outer covering | Nominal diameter of cable | Appro. weight of cable | Max resistance at 20℃ |
mm2 | mm | mm | mm | mm | mm | Kg/km | Oh/km |
1x10 | 0.7 | 1.2 | 28.3 | 1.6 | 22.3 | 623 | 1.83 |
1x16 | 0.7 | 1.2 | 32.1 | 1.6 | 23.3 | 719 | 1.15 |
1x25 | 1.0 | 1.2 | 36.3 | 1.6 | 24.4 | 842 | 0.727 |
1x35 | 1.0 | 1.2 | 40 | 1.6 | 25.4 | 970 | 0.524 |
1x50 | 1.0 | 1.2 | 44.6 | 1.6 | 26.6 | 1127 | 0.387 |
1x70 | 1.0 | 1.2 | 51.3 | 1.6 | 28.4 | 1390 | 0.268 |
1x95 | 1.0 | 1.2 | 57 | 1.7 | 30.1 | 1682 | 0.193 |
1x120 | 1.0 | 1.2 | 63 | 1.7 | 31.7 | 1956 | 0.153 |
1x150 | 1.3 | 1.2 | 71.9 | 1.8 | 34.3 | 2334 | 0.124 |
1x185 | 1.3 | 1.2 | 78.3 | 1.8 | 36 | 2745 | 0.0991 |
1x240 | 1.3 | 1.2 | 109.1 | 1.9 | 38.9 | 3422 | 0.0754 |
1x300 | 1.3 | 1.2 | 120.0 | 2.0 | 41.4 | 4106 | 0.0601 |

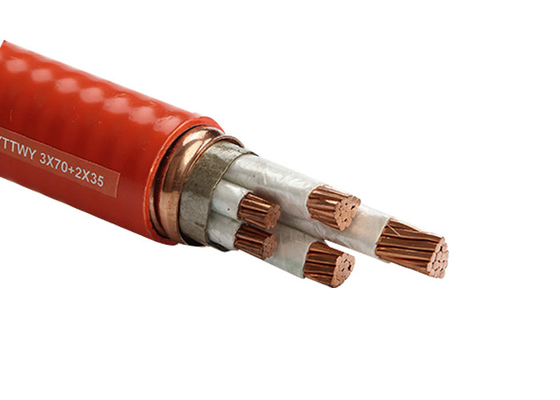

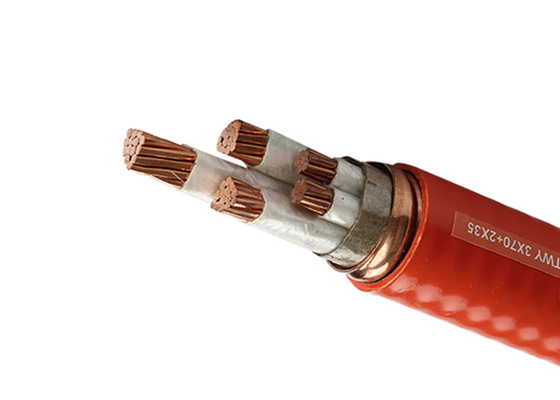

Fire Resistant Cable Picture
