Product Details:
Payment & Shipping Terms:
|
| Conductor Type: | Stranded | Conductor Material: | Copper |
|---|---|---|---|
| Application: | Overhead | Type: | Insulated |
| Insulation Material: | PVC | Color: | Requirement |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | Stranded Twisted Pair Flexible Wire,IEC 60228 Twisted Flexible Wire,PVC Insulated Electrical Cable Wire |
||

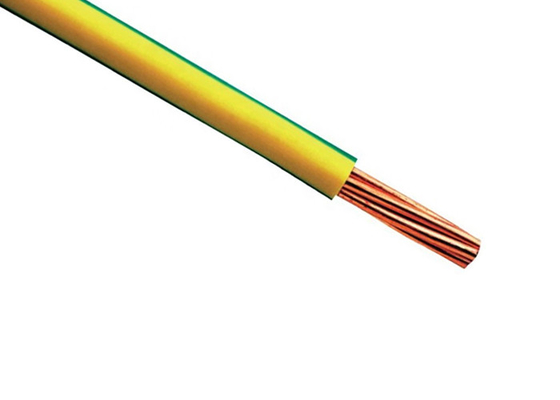

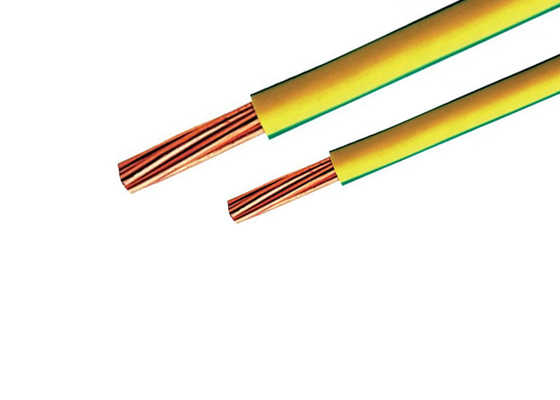

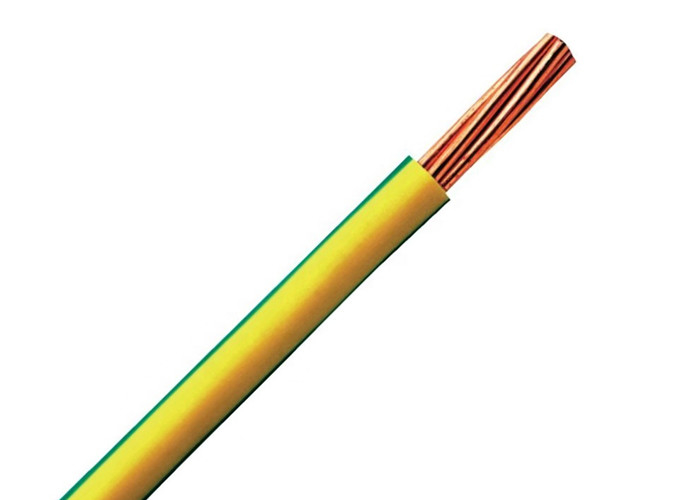

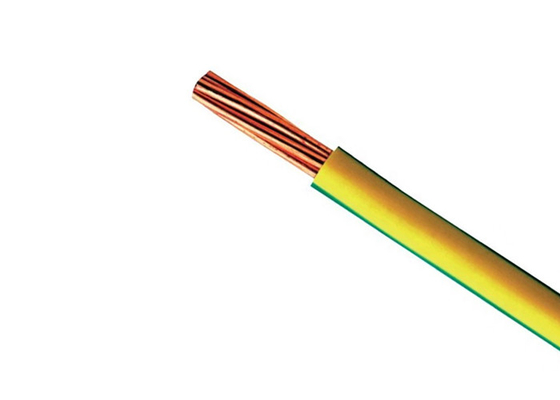

copper PVC Insulation twisted pair flexible wire
Description:
Flexible stranded Copper twisted, Cl.5, PVC Insulation
As per standard IEC 60227 IEC 60228 GB/T5023-2008
Constructions
Conductor: Flexible stranded copper conductor, conforms to IEC 60228 class 5
Insulation : PVC compound rated 70ºC or 85ºC for continuous operation.
Note: Insulation color as per standards or customer requirement
Applications
Used for indoor applications for electric power, lighting and internal wiring in houses.
Standards
International: IEC 60227 IEC 60331, IEC 61034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V, 300/300V, 450/750V
Max. Conductor Temp. in normal use: 70°C or 90°C
Certificates
CE, RoHS, CCC, KEMA and more others at request
Packing: Wooden Iron drum or 100m/roll then put into wooden Case.
.
