Product Details:
Payment & Shipping Terms:
|
| Conductor: | Flexible Copper Conductor | Insulation: | Rubber EPR |
|---|---|---|---|
| Sheath: | Rubber CPE | Rated Voltage: | 0.38/0.66kV |
| Application: | Portable Cable For Machine Connect | Type: | Mobile And Flexible |
| Material: | CPE | Color: | Orange , Yellow Or Black |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | 0.38KV Rubber Sheathed Cable,CPE Rubber Sheathed Cable,0.38KV tough sheathed cable |
||

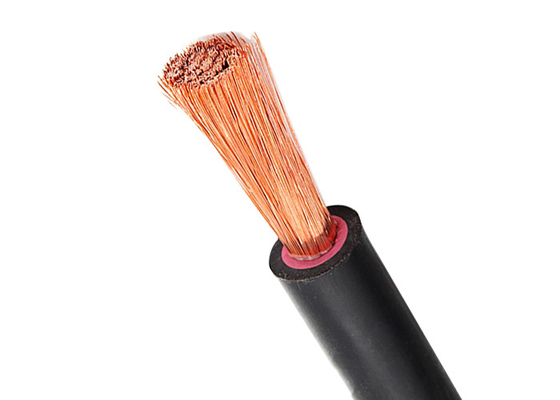

Flexible Copper Conductor Copper wire Shielding Rubber insulation Rubber Sheath Portable Cable
Specifications
| Type | Rated voltage (KV) | Number of cores | Nominal cross sectional area (mm) |
||
| Principal lines | Earth lines | Control lines | |||
| MY MYP |
0.38/0.66 | 3 | 1 | - | 4-185 |
| MYP | 0.66/1.14 | 3 | 1 | - | 10-185 |
| MYP | 1.9/3.3 | 3 | 1 | - | 16-185 |
| MYP | 3.6/6 | 3 | 1 | - | 16-185 |
| MYP | 6/10 | 3 | 1 | - | 16-185 |
| MYP | 8.7/10 | 3 | 1 | - | 16-185 |
| MC MCP |
0.38/0.66 | 3 | 1 | 3-7 | 16-185 |
| MCP | 0.66/1.14 | 3 | 1 | 3 | 35-185 |
| MCP | 1.9/3.3 | 3 | 1 | 3 | 35-185 |
| MCPT MCPTJ |
0.66/1.14 | 3 | 1 | 3 | 16-185 |
| MCPT MCPTJ |
1.9/3.3 | 3 | 1 | 3 | 16-185 |
| MYPT MYPTJ |
1.9/3.3 | 3 | 3 | - | 35-185 |
| MYPT MYPTJ |
3.6/6 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
6/10 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
8.7/10 | 3 | 3 | 3 | 25-185 |
| MZ MZP |
0.3/0.5 | 3 | 1 | 1 | 2.5-4 |
| MYQ | 0.3/0.5 | 2-12 | - | - | 1.0-6 |
Rubber cable of shield machine for mining
As per national standard
With high efficiency prodution
Competitive price
This rubber cable of shield machine for mining is mainly used for heavy equipment for open-pit mine and underground digging under the voltage system of 8.7 /15kV.
1. Usage
This rubber sheathed flexible cable used in coal-mining. Power supply connection Of coal mining machine and similar equipments.
2. Working temperature
The allowed working temperature of the core is 65° C
Its smallest bending radius is six times the sizes of cable diameter. The yellow sheath cable should not be exposed in the sun for long.
3. Model & Application
MY-0.38/0.66
Rubber-sheathed mobile flexible
Mining cable
Rated voltage 0.38/0.66KV, power supply connection
Of coal mining machine
MYP-0.66/1.14
Metallic shielded, Rubber sheathed
Mobile flexible mining cable
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine
MC-0.38/0.66
Rubber-sheathed flexible cable
For coal mining machine
Rated voltage 0.38/0.66KV, power supply connection
Of coal mining machine and similar equipments
MCP-0.66/1.14
Shielded rubber-sheathed flexible
Cable for coal mining machine
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine and similar equipments
MCPTJ-0.66/1.44
Metallic Shielded monitoring rubber-sheathed flexible cable for coal mining
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine and similar equipments
MZ-0.3/0.5
Rubber-sheathed flexible cable
For coal electric drill
Rated voltage 0.3/0.5KV, power supply connection
Of coal electric drill
Packing details:
The cable drums shall be used .
