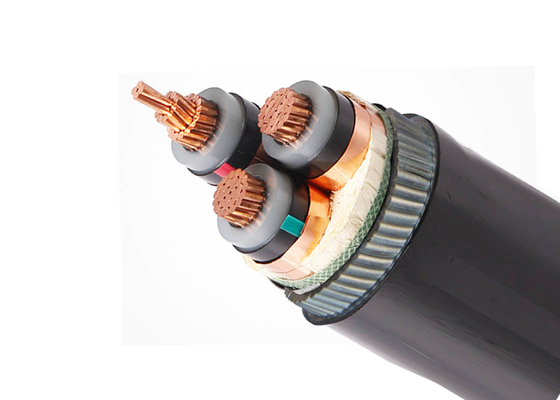

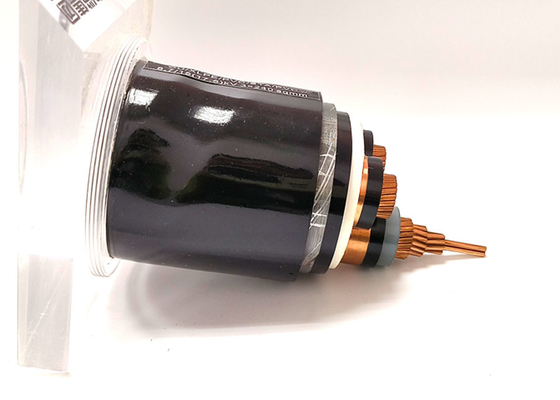

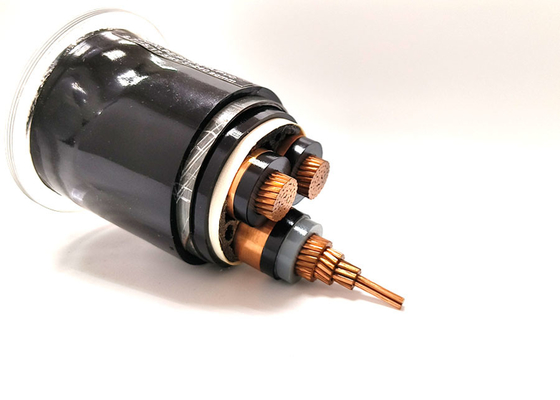

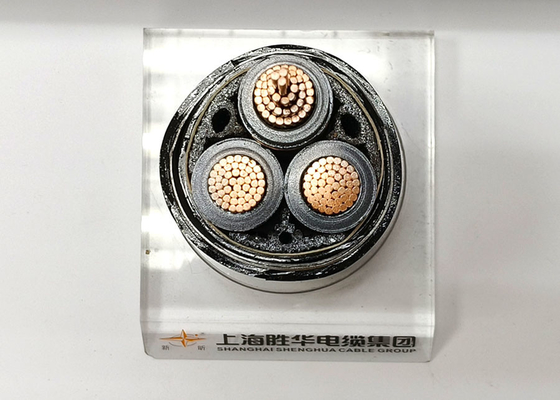

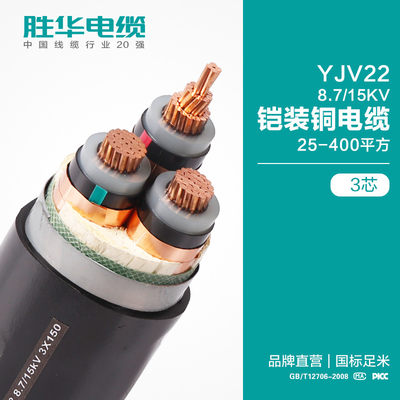

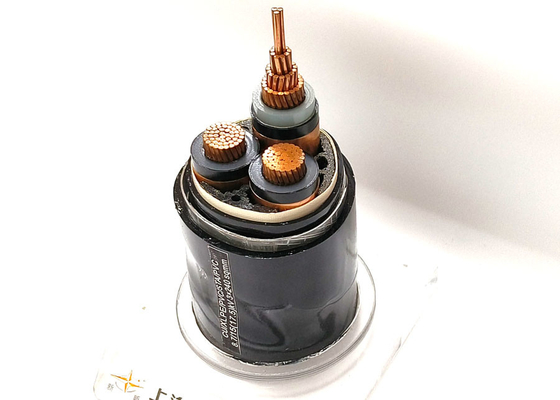

Three Cores Conductor XLPE PVC STA SWA 8.7/15(17.5)KV 3X240sqmm

Large Image : Three Cores Conductor XLPE PVC STA SWA 8.7/15(17.5)KV 3X240sqmm

Product Details:

Place of Origin:	CHINA
Brand Name:	SHANCABLE
Model Number:	CU/XLPE/PVC/STA/PVC 8.7/15(17.5)kV 3X240 sqmm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Cartons
Delivery Time:	15 work days
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Color:	Black	Rated Voltage:	8.7/15kV
Production:	Production	Jacket:	PVC
Feature:	Three Cores Armoured Cable	Screen Material:	Copper Tape
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	11kw EV Charing Cable , 32A EV Charing Cable , Type 1 to Type 2 EV Cable

Product Description

Product number	specification	Insulation thickness	Outer sheath thickness	Approx. overall diameter of cable
YJV22	3X1.5	0.7	1.8	10.0
	3X2.5	0.7	1.8	10.9
	3X4	0.7	1.8	12.0
	3X6	0.7	1.8	13.1
	3x10	0.7	1.8	15.8
	3x16	0.7	1.8	18.2
	3x25	0.9	1.8	21.3
	3x35	0.9	1.8	23.6
	3x50	1.0	1.8	23.8
	3x70	1.1	1.9	27.4
	3x95	1.1	2.0	33.1
	3x120	1.2	2.1	34.7
	3x150	1.4	2.3	39.1
	3x185	1.6	2.4	42.3
	3x240	1.7	2.6	47.8
	3x300	1.8	2.8	52.4
	3x400	2.0	3.1	62.9

The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

Packing: Carton

Shippling DHL
