Product Details:
Payment & Shipping Terms:
|
| Phase Conductor: | AL/ALOY | Neutral Conductor: | Aluminium Alloy Or Bare |
|---|---|---|---|
| Rated Voltage: | 0.6/1KV | Insulation: | PVC |
| Application: | Overhead Power Line | Sheath: | No |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | Overhead Aerial Bundled Cable,0.6/1kV Spacer Cable,IEC 60502 Aerial Bundled Cable |
||

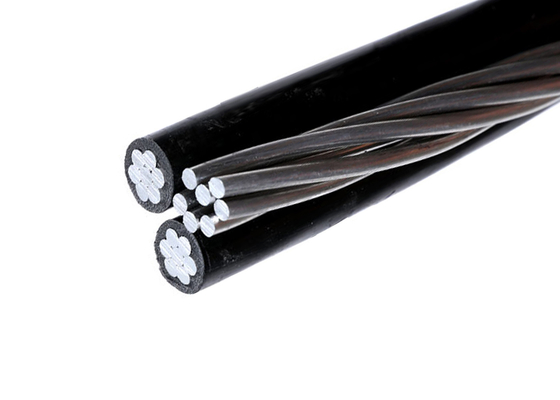

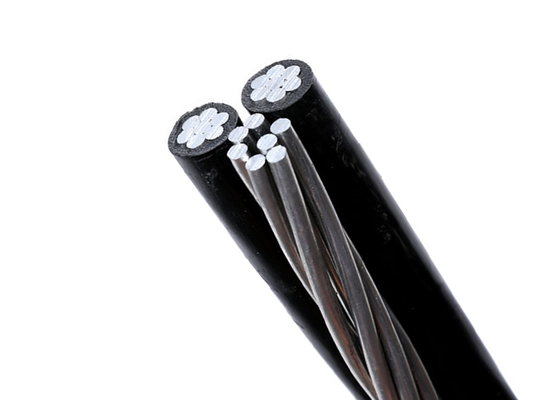

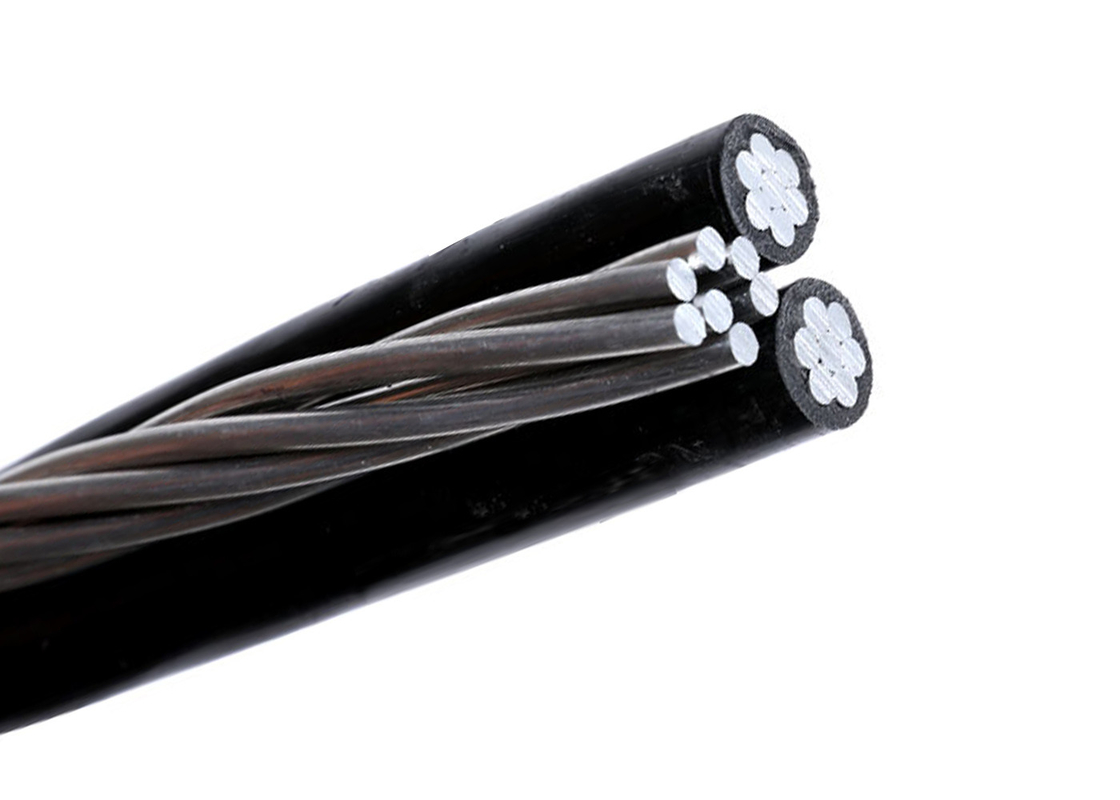

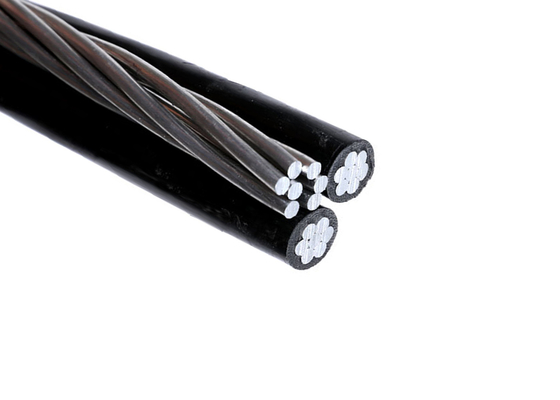

Overhead 0.6/1kV Electric Transmission Aerial Bundled Cable Spacer ABC Cable
ABC service drop cable
AAC/ACSR/XLPE
Duplex/Triplex/Quadruplex service drop
Al/XLPE+ACSR 0.6/1kV overhead ABC cable
Detailed Product Description
ABC cable
(Service drop cable)
1. Stranded aluminium conduct
2. PE or XLPE insulation
3. ACSR, AAAC Messenger wire
Application
It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas
where the cost of underground networks is expensive and also
for electrification of rural areas like villages.
Voltage
Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV
Technical Data
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
ABC technical charaters based on Standard ASTM ANSI/ICEA S-76-474 and NFC 33-209
Standards
GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
*KAIQI POWER can also design and produce for special application requirement.
Products Type
| Chinese Type | Short time | Description | Application | |
| Copper conductor | Aluminum conductor | |||
| JKV | JKLV,JKLHV |
Covered line wire
|
PVC insulated aerial cables | For aerial power transmission application |
| JKY | JKLY,JKLHY | PE insulated aerial cables | ||
| JKYJ | JKLYJ,JKLHYJ | XLPE insulated aerial cables | ||
| JKLGYJ | Steel reinforced aluminium wire with XLPE insulated aerial cable | For aerial power transmission application | ||
| For aerial power transmission application,able to bear moderate pulling force. | ||||
Production Range
Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2
Nominal cross-section(mm2): 10~240
Construction
Phase conductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Neutral or messenger conductor :Round standed or compacted 6201 aluminium alloy or AAC ,,ACSR
Street lighting conductor: Round standed or compacted Aluminium conductor
Insulation : LDPE ,HDPE,XLPE ,PVC ( UV-resistant)
Note: The above provisions can be changed as order
PACKING AND SHIPPING
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
