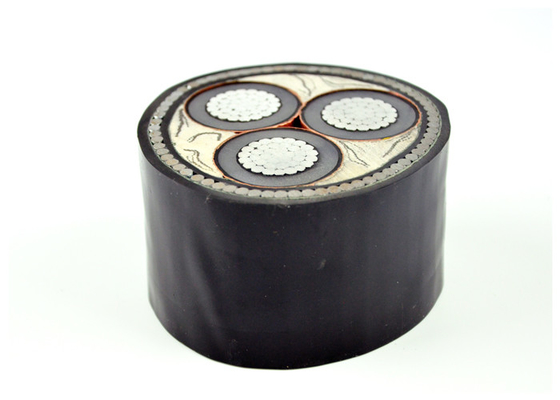

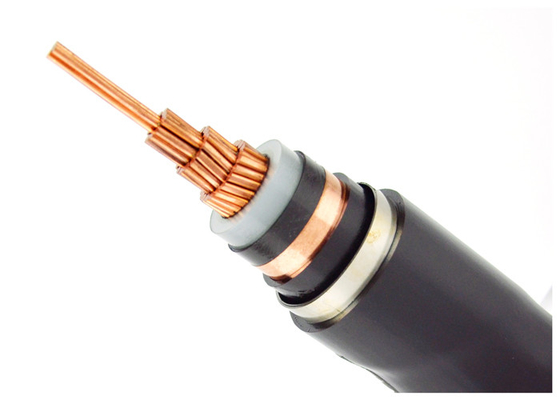

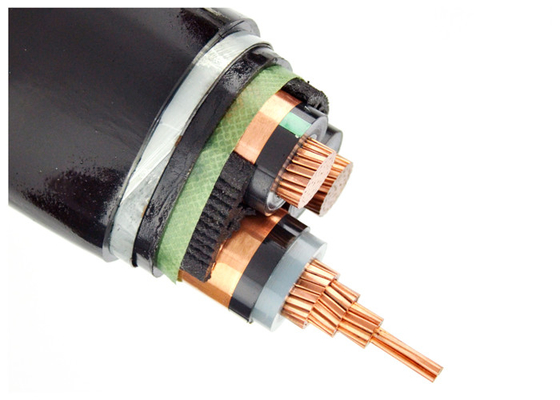

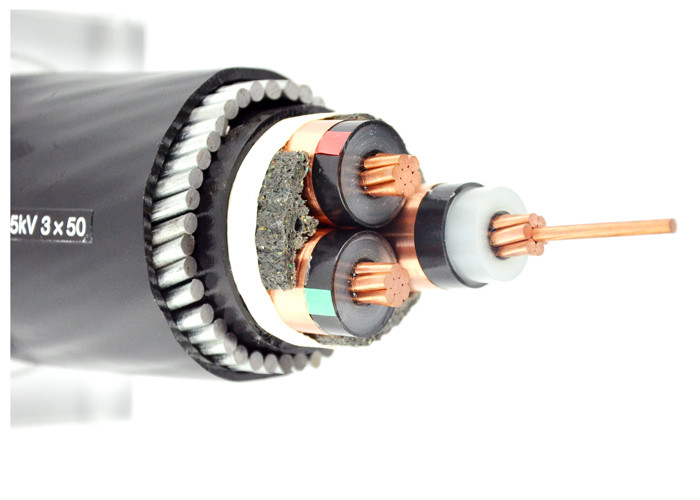

Double Layer Steel Tape Armoured Electrical Cable IEC60228 Standard

Large Image : Double Layer Steel Tape Armoured Electrical Cable IEC60228 Standard

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	YJV22-0.6-1KV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Product Name:	Armored Power Cable	Conductor:	Copper
Insulation:	XLPE(cross-linked Polyethylene) Rated At 90 OC	Inner Sheath:	PVC Or As Request
Armored:	Steel Tape.	Sheath:	PVC Or FR-PVC Type ST2 To IEC 60502, Black
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	Double Layer steel tape armoured cable , IEC60228 steel tape armoured cable , Steel Tape Armoured Electrical Cable

Copper Conductor XLPE Insulation Double layer Steel Tape Armored Power Cable

Armored Power Cable Construction

Conductor :Stranded Copper Conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Inner sheath :PVC or as request

Armored : Steel Tape.

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Armored Power Cable Application

Apply to shafts,water and soil,able to bear the larger positive pressure. Underground directly

Armored Power Cable Standard

International: IEC 60502, IEC 60228,

China: GB/T 12706, (GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Armored Power Cable Technical data:

Rated voltage:0.6/1KV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D for multi core

Armored Power Cable Certificate

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 500m

Price term: FOB shanghai or as request.

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum

Armored Power Cable Specifications

Armoured Cable Wiring Details

Double Layer Steel Tape Armoured Electrical Cable IEC60228 Standard 1

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
