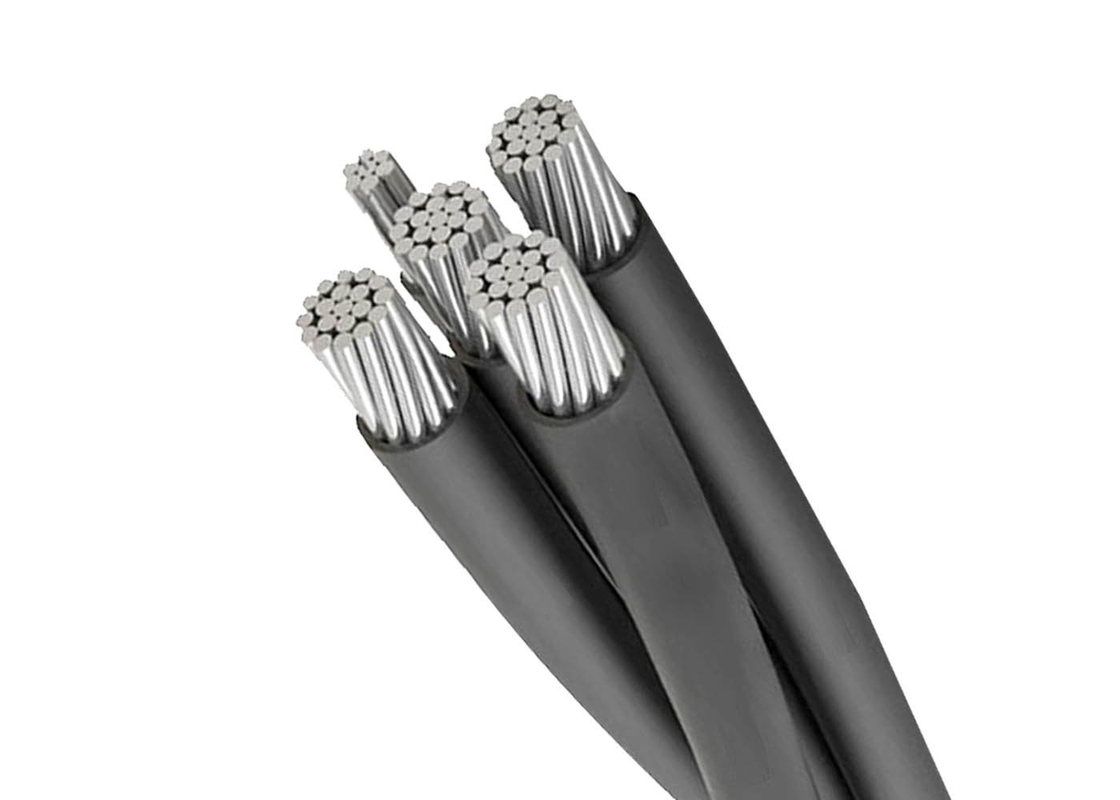

Aluminum Conductor XLPE Insulation ABC Bundled Cable

Large Image : Aluminum Conductor XLPE Insulation ABC Bundled Cable

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ASTM B-231,B232,B399, ICEA S-79-474
Model Number:	ABC-ACSR/Quadruplex

Payment & Shipping Terms:

Minimum Order Quantity:	0.5km
Price:	0.10-10.99USD/m
Packaging Details:	Wooden Drum or Steel Drum
Delivery Time:	10Days or More
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000km per Month

Contact Now

Detailed Product Description

Conductor:	Aluminium/ Aluminium Conductor Steel-reinforced	Insulation:	XLPE Or PVC
Rated Voltage:	0.6/1 KV	Structure:	3 Phase + 1 Bare Neutral
Application:	Overhead Power Transmission Lines	Sheath:	No
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	XLPE Insulation ABC Bundled Cable , Aluminum Conductor ABC Bundled Cable , XLPE Insulation abc aluminium cable

Good performance Aluminum conductor XLPE insulation Aerial Bundled Cable ABC

1. Applications

Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.

2. Standards

QUADRUPLEX SERVICE DROP-ALUMINIUM CONDUCTOR

ASTM B-231,B-232 and B-399, ICEA S -79-474

ACSR
Morchuca	6-Solid	1.143	4.115	6.401	6-6/1	539.772	63	149	229	78

Chola	6-7	1.143	4.674	6.960	6-6/1	539.772	71	149	237	78
Morgan	4-Solid	1.143	5.182	7.468	4-6/1	843.667	79	238	344	103

Hackney	4-7	1.143	5.893	8.179	4-6/1	843.667	89	238	356	103
Palomino	2-7	1.524	7.417	9.703	2-6/1	1292.732	115	377	557	136

Albino	1-19	1.524	8.433	11.481	1-6/1	1610.245	171	473	699	158
Standardbred	1/0-7	1.524	9.347	12.395	1/0-6/1	1986.724	192	598	859	182

Costena	1/0-19	1.524	9.474	12.522	1/0-6/1	1986.724	193	598	862	182
Chicoteagues	2/0-7	1.524	10.516	13.564	2/0-6/1	2404.027	217	753	1060	210

Grullo	2/0-19	1.524	10.643	13.691	2/0-6/1	2404.027	220	753	1063	210
Mare	3/0-7	1.524	11.786	14.834	3/0-6/1	3002.766	249	951	1308	242

Suffolk	3/0-19	1.524	11.938	14.986	3/0-6/1	3002.766	251	951	1313	242
Stallion	4/0-7	1.524	13.259	16.307	4/0-6/1	3787.477	286	1198	1622	279

Appaloosa	4/0-19	1.524	13.411	16.459	4/0-6/1	3787.477	289	1198	1627	279
