Product Details:
Payment & Shipping Terms:
|
| Insulation Material: | Xlpe | Type: | LOW VOLTAGE |
|---|---|---|---|
| Application: | Underground | Conductor Material: | Copper |

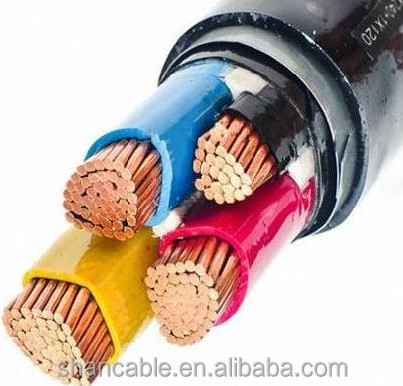

| Jacket: | PVC | Product Name: | LV 0.6/1kV Xlpe Underground Insulated 70 Sq Mm Copper Cable |
| Armour: | Steel Tape Or Wire Armour | Warranty: | 2 Years |
| Insulation: | XLPE | Conductor: | Pure Copper |
| Rated Voltage: | 0.6/1KV | Sheath: | PVC |
| Standard: | IEC60502 | Color: | Customized |
| Core: | 4 Core | Port: | Shanghai |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | 4 Core xlpe medium voltage cable,Underground xlpe power cable,Copper IEC60502 xlpe power cable |
||
Application
Applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.
For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.
YJ: XLPE insulation
V: PVC insulation
V: PVC sheath
22: Galvanized steel tape armoring
32: Galvanized steel wire armoring

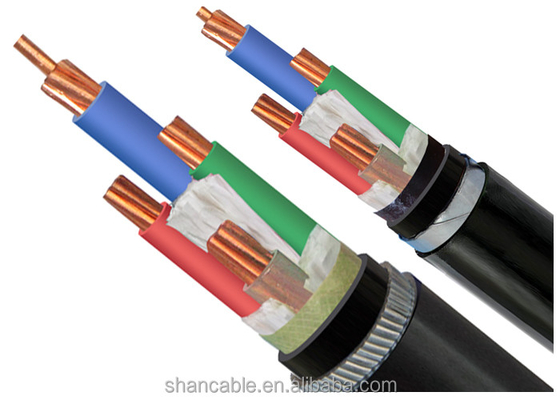

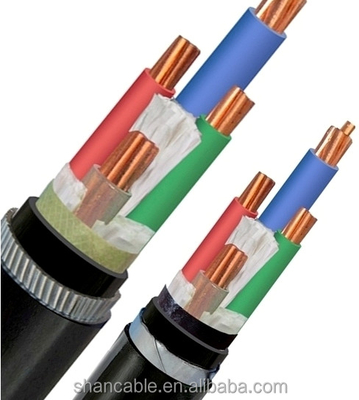

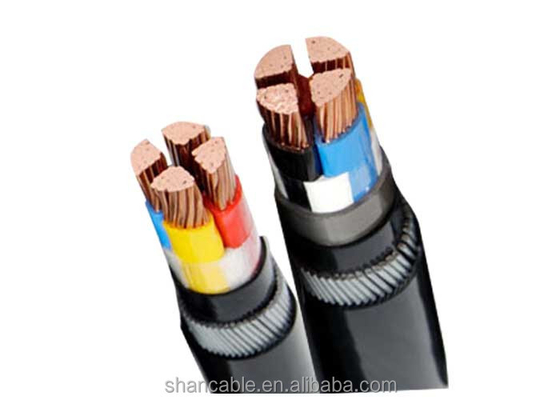

Construction:
Stranded (RM) bare copper as per IEC60228
Mica Tape for Fire-Proof
XLPE (cross-linked polyethylene) Insulation
Fillers strip, Yarn, or Paper
Non woven Wrapping tape or Flame Retardant
Extruded PVC Inner Covering
Galvanized Steel Tape Armoured
Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Technical data:
Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
Standards:
IEC 60502, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
Model Explanation:
| Model | Nominal Cross Section (mm2) | ||||
| Single Core |
Two Core |
Three Core |
Four Core |
Five Core |
|
| VV22 YJV22 | 6-400 | 4-300 | 4-300 | 4-300 | 4-300 |
| VV32 YJV32 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
XLPE Insulation Electric Wire Cable
|
Type |
Desciption |
Rated Voltage |
NO. of Cores |
Nomibal section(mm2) |
Applications |
|
YJV YJLV |
Cu or Al conductor,XLPE insulated.PVC sheathed electric cable |
0.6/1KV |
1,2,3,4 |
1.5 to 400 |
For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces. |
|
3+1 |
3×4+1×2.5 to 3×400+1×185 |
||||
|
6/6kV |
1,3 |
25 to 500 |
|||
|
8.7/10kV 8.7/15kV 12/20kV |
1 |
25 to 500 |
|||
|
3 |
25 to 300 |
||||
|
21/35kv |
1 |
50 to 500 |
|||
|
YJV22 YJLV22 |
Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable |
0.6/1KV |
3 |
1.5 to 400 |
Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
|
4 |
4 to 240 |
||||
|
6/6kV 8.7/10kV 8.7/15kV 12/20kV |
3 |
25 to 300 |
|||
|
21/35kv |
3 |
50 to 240 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
| Q: | How long does it take to get a quote back? |
| A: | Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days. |
| Q: | Do you custom package? |
| A: | We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need. |
| Q: | What warranties do your products carry? |
| A: | SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. |
| Q: | Do you sell other products besides wire and cable? |
| A: | Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world |
