Product Details:
Payment & Shipping Terms:
|
| Voltage: | 1.99/3.3KV | Phase: | 16mm2 To 185mm2 |
|---|---|---|---|
| Conducotor: | Flexible Copper | Insualtion: | EPR |
| Sheathed: | CPE | Place Of Origin: | Shanghai |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | rubber electrical cable,rubber coated cable |
||

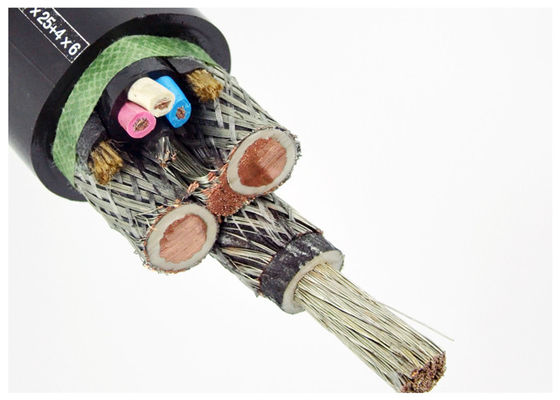

1.9 / 3.3 KV Metallic Sheathed Cable EPR Insulation MCPT High Density
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: EPR
Screen: Copper Wire Brain Screent / Tinned Copper Wire Screen
Sheath: CPE
China supplier 0.38/0.66 rubber sheath mining power flexible coppe underground cable for mining
cable
TOP TEN CABLE MANUFACTURER IN CHINA
ONE OF LARGEST CABLE MANUFACTUER IN CHINA
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
Brief introduction
1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.
2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)
CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.
3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times
of the cable diameter; for the others, it is 6 times of the cable diameters.
4 The grounding wire should be well connected with the earth.
5The cable should be prevented from exposing to the sunshine for a long time.
Implemented standard
1 For the non-spread combustion cable, implement GB12972
2 For the flame-retardant cable, implement MT818
3 For the special mining cable(with bigger cross-section and higher voltage),implement the
enterprise standard.
Type and Name:
| Type | Rated voltage (KV) | Number of cores | Nominal cross sectional area (mm) |
||
| Principal lines | Earth lines | Control lines | |||
| MY MYP |
0.38/0.66 | 3 | 1 | - | 4-185 |
| MYP | 0.66/1.14 | 3 | 1 | - | 10-185 |
| MYP | 1.9/3.3 | 3 | 1 | - | 16-185 |
| MYP | 3.6/6 | 3 | 1 | - | 16-185 |
| MYP | 6/10 | 3 | 1 | - | 16-185 |
| MYP | 8.7/10 | 3 | 1 | - | 16-185 |
| MC MCP |
0.38/0.66 | 3 | 1 | 3-7 | 16-185 |
| MCP | 0.66/1.14 | 3 | 1 | 3 | 35-185 |
| MCP | 1.9/3.3 | 3 | 1 | 3 | 35-185 |
| MCPT MCPTJ |
0.66/1.14 | 3 | 1 | 3 | 16-185 |
| MCPT MCPTJ |
1.9/3.3 | 3 | 1 | 3 | 16-185 |
| MYPT MYPTJ |
1.9/3.3 | 3 | 3 | - | 35-185 |
| MYPT MYPTJ |
3.6/6 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
6/10 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
8.7/10 | 3 | 3 | 3 | 25-185 |
| MZ MZP |
0.3/0.5 | 3 | 1 | 1 | 2.5-4 |
| MYQ | 0.3/0.5 | 2-12 | - | - | 1.0-6 |
We are focus
We specialize in manufacturing and exporting many kinds of wire and cables. We have professional engineers, skilled workers, advanced manufacturing equipments and scientific management.
Our commitment to service and our abilities to provide the ideal solutions for your application is the basis for our growth. When you come to Ninggang, you can expect personalized attention. Our experts will help to identify, solve and supply your flexible cable needs and requirements- for any environment.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
| CorexSize | Insulation Thickness | Overall diameter(mm) MCP-1.9/3.3 |
||||
| Phase | Grounding | Control | Phase | Thickness | Min | Max |
| 3x25 | 1x6 | 3x4 | 2.8 | 6 | 44.5 | 51 |
| 3x35 | 1x6 | 3x4 | 2.8 | 6 | 48 | 54.5 |
| 3x50 | 1x10 | 3x6 | 2.8 | 7 | 54 | 61.5 |
| 3x70 | 1x16 | 3x6 | 3 | 7 | 60 | 67 |
| 3x95 | 1x25 | 3x10 | 3 | 7 | 65 | 72.5 |
| 3x120 | 1x25 | 3x10 | 3.2 | 7 | 69.5 | 77.5 |
| 3x150 | 1x35 | 3x10 | 3.2 | 7 | 74 | 82.5 |
| 3x185 | 1x35 | 3x10 | 3.2 | 7 | 79 | 87 |
